Constellation HP1   CS 25




  • 25 kg weight including battery and trim
  • Runtime up to 420 min
  • Li-Ion batteries
  • Sealed motor
  • Neutral buoynacy at any depth
  • Stepless speed setting or 5 step speed setting
  • One-handed operation
  • Material: aluminium, Delrin, Carbon

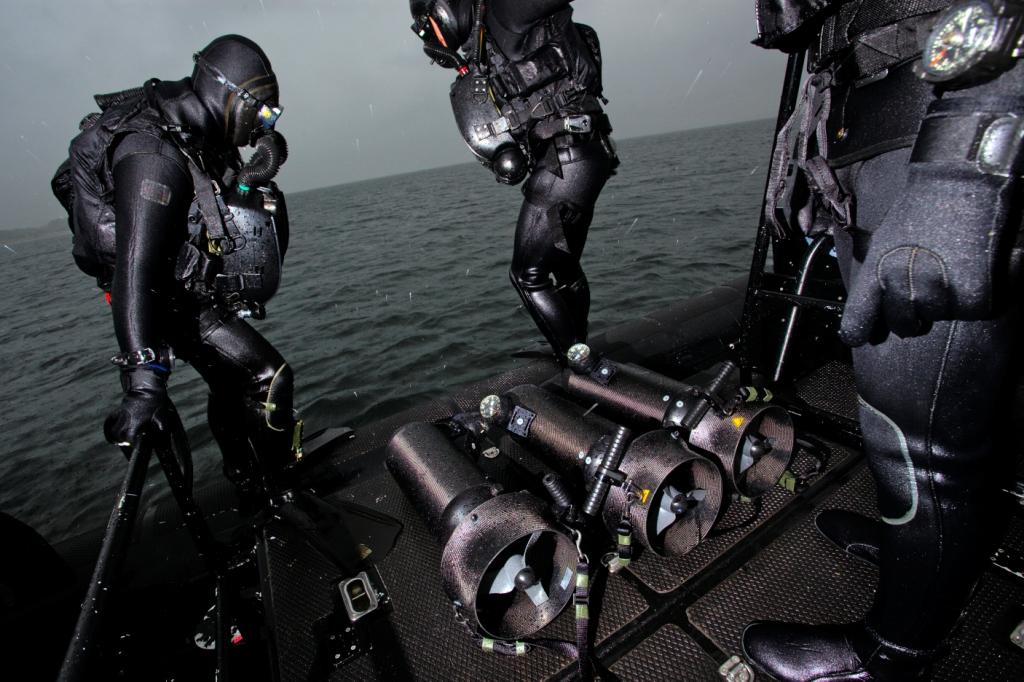

The Constellation HP1 is the ideal equipment for all frogmen. Its light weight enables easy single-person transport over water, from a boat into water and underwater.

The diver can also transport additional equipment. Useful accessories such as the navigation unit and clamping mechanisms for transported equipment can be conveniently attached.

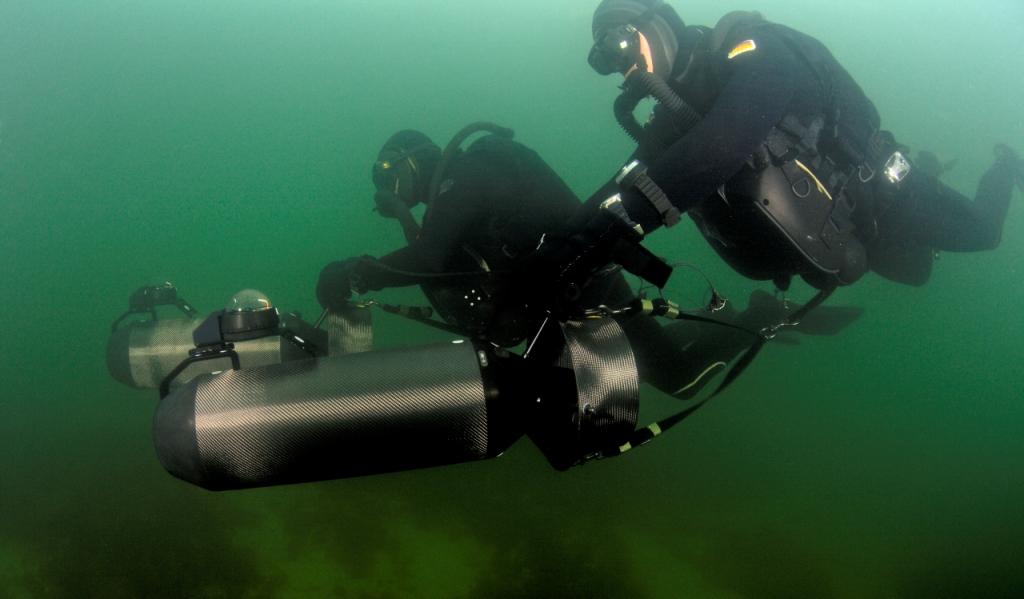

The Bonex submersible is suitable as a pulling device for two divers. Its simple operation and easy propulsion under water allow the diver to focus on his or her mission. The radius of action is also increased many times over.


Technical Data (● standard / ○ optional)

Model Constellation HP1 CS-25
Dimension Ø218/300 mm
L=850 mm
incl. battery + trim
25 kg
Operating depth 150 m
Runtime full speed 200 min +
Runtime cruising up to 420 min
Rang up to 18 km
Thrust 340 N
Speed 90 m/min ( 3 Kn )
Charger 230V-50 Hz, 110V-60 Hz
Charging time 5 hrs.
Amount of batteries 2
Chosable between battery
Main switch
Infinitely variable or 5 step speed regulation
Temperature control
Propeller cut off
Performance control
Battery protection
Soft start
Update possible
System handle with picatinny rail
Tow Belt
Torque Control
Navigation unit
Torque Control
Convertable to shuttle
delivery available
